J a p a n


Cape gauge sleeping-car trains “Twilight Express” Osaka – Tsuruga – Sapporo and (right) “Cassiopeia” Tokyo Shinjuku – Sendai – Sapporo (ads 2008)

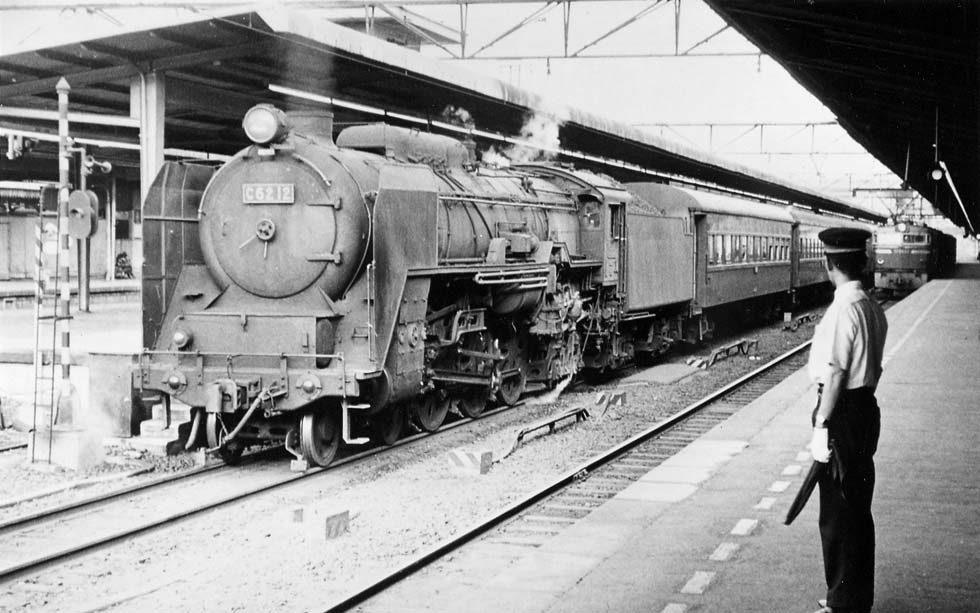

Hudson built for the Limited Expresses of the old Cape-gauge Tokaido line, class C62, Hiroshima 1966 (Dr. Stephan Stoeckl)

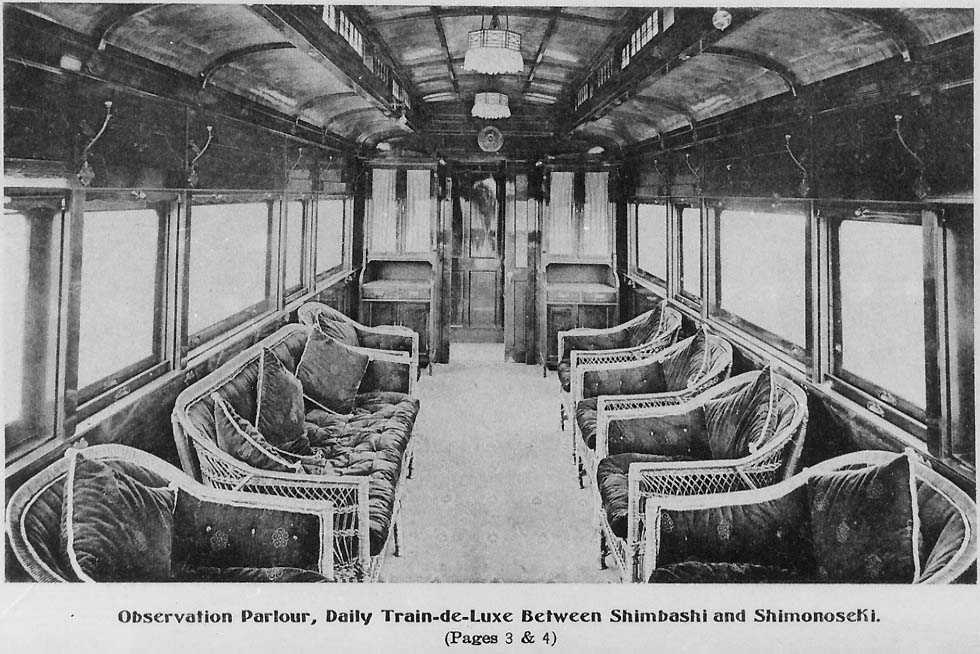

Train-de-Luxe Shimonoseki - Tokyo (Japan Imperial Government Railways Handy Guide 1914)

The traditional connection from Europe and China had been by the way of Busan, Korea, and then by the Cape gauge Limited Expresses from Shimonoseki to Tokyo. Another traditional way had been by ship from Vladivostok to Tsuruga and by train to Tokyo. Then the boats from Vladivostok were calling at Yokohama, later at Fushiki (see www.ships-worldwide.com). In 1964 appeared the high-speed Shinkansen train sets on completely new standard gauge lines, the fastest trains of the world, shocking the railway administrations elsewhere. K. Sogo is recognized as the "father" of the Shinkansen. In the first years of the 21st century 120 bullet trains daily left Tokyo in southern and 120 in northern direction, altogether 240 departures and 240 arrivals - on time! With "distributed power" they are lighter than the European TGV and ICE1, which appeared with two decades delay.

Limited Express 2 "Fuji"
Shimonoseki - Tokyo by Imperial Government Railways (Cape gauge, twelve-wheel cars, ship connection from Busan, formation in 1935 (according to Izumi Mazuda):
C53(Pacific)
Kani(van)
Suhane(sleeper 3rd class)
Suha(coach 3rd class)
Suha(coach 3rd class)
Sahafu(coach 3rd class)
Sushi(dining car)
Suro(coach 2nd class)
Marone(sleeper 2nd class)
Maine(sleeper 1st class)
Maite(sleeper 1st with observation platform)
Traction: Initially various 4-4-0 types, after c.1911 tenwheelers, from around 1920 Pacifics C51, then C53, including the streamlined prototype C5343, possibly also C55, and then Pacifics C59. New 4-6-4 types C61 and C62 appeared in 1947 and 48. On the sections Seno - Happonmatsu and Yamakita - Numazu helpers were pushing, until c. 1925 Mallets. Only when 1,5kV dc electrification from Tokyo reached Numazu in 1934, expresses changed to electric traction. Later 20kV60Hz ac was chosen.

Colors: Steam locomotives black, electrics initially brown, cars initially wood paneled, from 1929/30 all-steel, brown.


Between Shimonoseki and Tokyo on Cape gauge there remained several sleeping car trains every night, no. 2/1 Fuji starting at Oita on Kyushu island, but their future is uncertain.

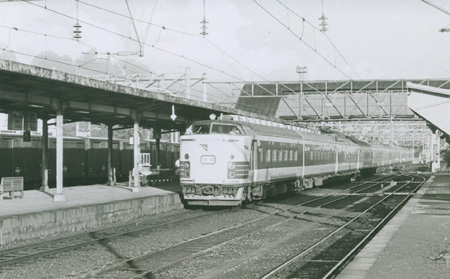

"Ariake" sleeping-car train Nishi Kagoshima - Tokyo on Cape gauge at Ijuin in 1975 (William Pearce)

Tsuruga - Tokyo
The steamer from Vladivostok connected at Tsuruga port with a special, consisting only of one sleeper (with guard's compartment) on Cape gauge to Tokyo, hauled to Tsuruga station by small freight engines. There it was attached to a train Tsuruga - Maibara, hauled by class 2120 or 2400 (0-6-2T, before WWI), then 9600 (2-8-0), D50 and D51 (2-8-2). At Maibara it was attached to the express Fuji (information by Izumi Mazuda).

Shinkansen
Already in 1940 the project of a 1.435 m standard gauge line Tokyo - Shimonoseki for 160, later 200 km/h started, but then it was stopped due to the war. It was intended as a fast connection with the ferry boats to occupied Korea and connecting trains for China.

On Oct.1, 1964, the Tokaido Shinkansen Tokyo - Shin-Osaka was inaugurated, in 1972 the Sanyo Shinkansen, the extension southward to Okayama and in 1975 to Fukuoka Hakata, close to Nagasaki. At Shimonoseki it serves the ferry boat connections to Korea. The trains are departing at Tokyo Central. In 1982 followed the Joetsu Shinkansen from Tokyo westward to Niigata and the Tohoku Shinkansen northward to Morioka, later Akita and Hachinohe. In 1992 the branch to Yamagata was completed on an old track and therefore with a smaller profile, then extended to Shinjo. First the Niigata and Tohoku trains departeded at Tokyo suburbs, from 1985 at Tokyo Ueno and from 1991 the Joetsu & Nagana Shinkansen as well as the Tohoku, Yamagata & Akita Shinkansen trains are starting at Tokyo Central. The Nagano line is expected to be extended to Kanazawa in 2015. The 54 km long Seikan tunnel northward to Hokkaido island has been built for Shinkansen profile, but equipped only with Cape gauge. It did not achieve the expected traffic and became converted to a Shinkansen high-speed line for 360 km/h, announced to reach Shin-Hakodate in 2016. On Kyushu island in the south the isolated standard gauge Tsubame line is connected with the Sanyo Shinkansen, thus establishing a high-speed link Tokyo - Kagoshima Chuo over a distance of c.1,460 km.

All the Shinkansen trains are electric multiple units for fast daylight services, from the beginning exclusively with distributed power. As the lines south of Tokyo are electrified with 25kV 60Hz ac and the northern lines with 25 kV 50Hz ac, different train sets were needed. With dual system trains that disadvantage for the passengers could be omitted. Speeds on the Tokaido line, initially 210 km/h, in 1992 did rise to 270 km/h with the ultra-fast "Nozomi" services by series 300, then 500 and 700. On the Sanyo section 285 km/h was allowed and the distance of 1,180 km between Tokyo and Hakata Fukuoka was covered in 5 hours. The fastest train became the series 500 of JR West with 18,240 kW power, introduced in 1997 on services from Tokyo to the utmost south. The striking "supersonic" appearance of that aluminum train in silver/grey colors with green Japan West Railway titles seemed to express its initial speed of 300 km/h and its capability of running much faster. Its exterior design was created by Alexander Neumeister, who has styled the German ICE3. Composite materials, possibly tilting technology in connection with the Automatic Train Control and trains for still higher speeds up to 360 km/h became targeted. A first step was the N700 with tilting technology, introduced by JR Central. The sensation became East JR's Fastech360S experimental prototype, built for speeds up to 400 km/h. The "arrow nose" of that 8-car prototype looks like the Spanish "ant", but the "stream nose" at the other end has the beauty of the Nozomi 500. The tiny windows however are astonishing.

In 1997, indebted Japan National Railways was split up into several enterprises of Japan Railways, the most significant ones being Central Japan Railway with the Tokaido Shinkansen line, West Japan Railway with the Sanyo Shinkansen and East Japan Railway with the Tohoku Shinkansen. For Shinkansen passengers generally there is standard and "green" class, with an ambulant snack service, vending machine or bar. Only temporarily there had been twin-deck deluxe cars placed in the middle of series 100 (cars 8 and 9) and series 200 train sets. The option of Shinkansen night trains was studied, but rejected. Around 2008 even the end of conventional sleeping-car trains on the old gauge came into consideration. The interiors of the high-speed trains are designed in a clear style, with reversing seats and a closely spaced windows layout, providing a view from every window seat (contrary to some European expresses!). Trains of the Tokaido and Sanyo Shinkansen consist of 16 cars. On the lines north of Tokyo two shorter units often are coupled, e.g. an E3 with a twin-deck MAX. Standard color scheme on the Tokaido line is white/blue. On the Tohoku line it had been white/green, but then a multitude of paint schemes emerged.

In 1995 the still faster SMLLMC ("Superconductive Magnetically - Levitated Linear Motor Car") MLX01 test unit was built, in consideration for a future Chuo Shinkansen to the south, using low-temperature super-conductors with liquid helium for a coolant. NASA in USA is developing HTS (high-temperature super conductors), easier to handle. At the start of the 21st century however, railway history still was made in Japan, far ahead of Europe, not to speak of America. In 2010 the government approved building the Chuo Shinkansen with maglev technology. The media reported in 2011 the intention of connecting Tokyo with Nagoya by 2027 and with Osaka not before 2045. Tokyo – Osaka, now 553km, is covered by the Nozomi within c.2 ½ hours. The maglev would do it in 67 minutes at a speed of more than 500km/h.

Shinkansen
Standard gauge, maximum speed is higher, test vehicles not mentioned, updated 2012:
SeriesYear Current acServicesNotesSpeedCars
0196425kV 60HzTokyo-Osaka/Okayama/H. Fukuokauntil 200121016
100198625kV 60HzTokyo-Hakata Fukuokauntil 200621016
200198225kV 50HzTokyo-Niigata, Hachinohe, Akitareduced24012
300199225kV 60HzTokyo-Hakata Fukuoka27016
400199220/25kV50HzTokyo-Yamagata/Shinjomini2406-7
500199725kV60HzTokyo-Hakata Fukuoka30016
700199925kV60HzTokyo-Hakata Fukuoka290 (300)16
N700A201325kV60HzTokyo-, Tokaido+Sanyo Shinkansentilting270/30016
800200425kV60HzYatsushiro-Kagoshima2606
E1199425kV/50HzTokyo-Niigatatwin-deck24012
E2199725kV50/60HzTokyo-Nagana, Hachinohedual-system260 (315)8-12
E3199720/25kV50HzTokyo-Shinjo, Akitamini2756-7
E4199725kV 50HzTokyo-Moriokatwin-deck2408
E5201125kV50HzJR East, Tohoku Shinkansenbased on 360S 32010
E6JR Eastmini
E7/ W72014E7 JR East, W7 JR West26012

Series 500
Cars 1 to 16:
Mc, M1, Mp, M2, M', M1, Mp, Ms2, Ms, M1s, Mpkh, M2, M', M1, Mp, M2c


Series 700C
Cars 1 to 16:
Tc, M2, M'w, M1, M1w, M', M2k, T's, Ts, M2s, M'h, M1, M1w, M', M2w, T'c



Series N700
Derivative of series 700 with tilting technology.



Literature (in Japanese): The Shinkansen, Sansuisha/Kodansha, 2004
Literature (in German) by Tomas Meyer-Eppler and by Thomas Estler

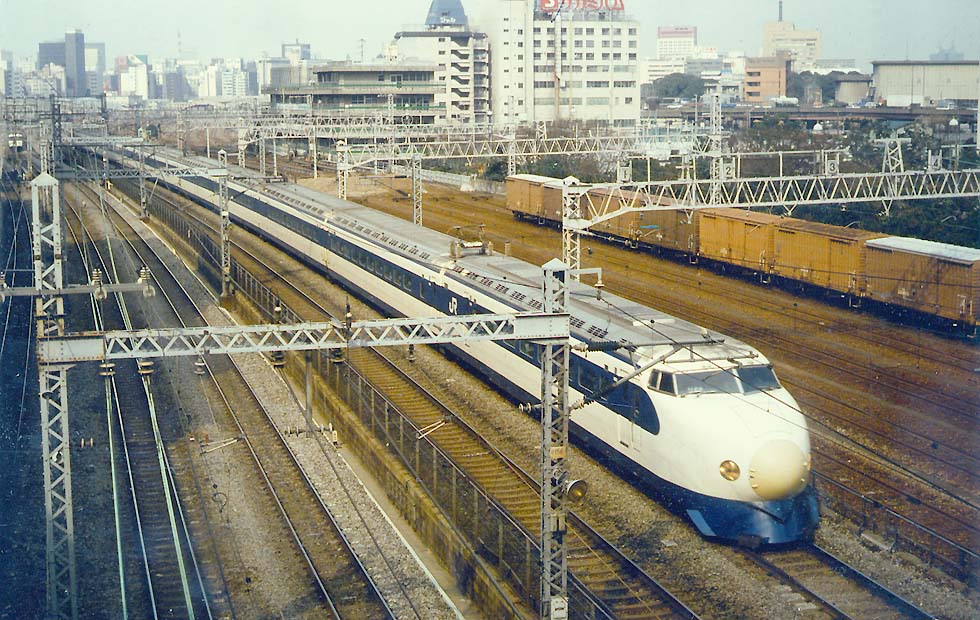

Tokaido Shinkansen series 0, Tokyo 1988 (Wolfram Veith)

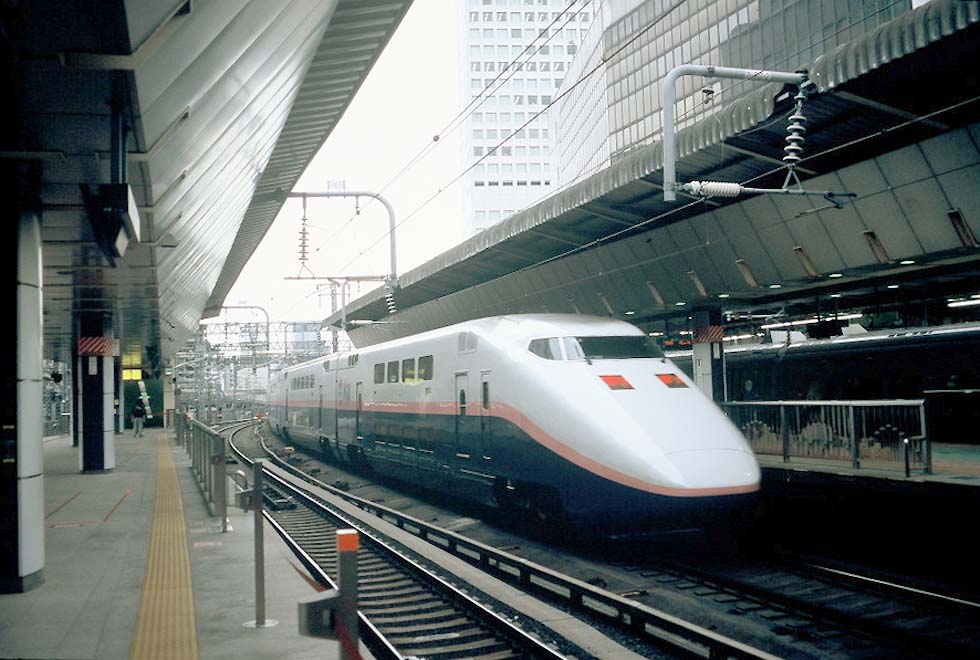

Twin-deck MAX for Sendai or Morioka, coupled with an Akita Shinkansen, Tokyo Central, 2005 (WS)

Shinkansen 100 with short-lived twin-deck de-luxe cars, 1988 (Wolfram Veith)

Shankansen series 200, Joetsu Shinkansen 1988 (Wolfram Veith)

Shinkansen series 300, Tokyo 2005 (WS)

Nozomi series 500, Tokyo 2005 (WS)
Nozomi 700 Tokyo - Hiroshima, 2005 (WS)

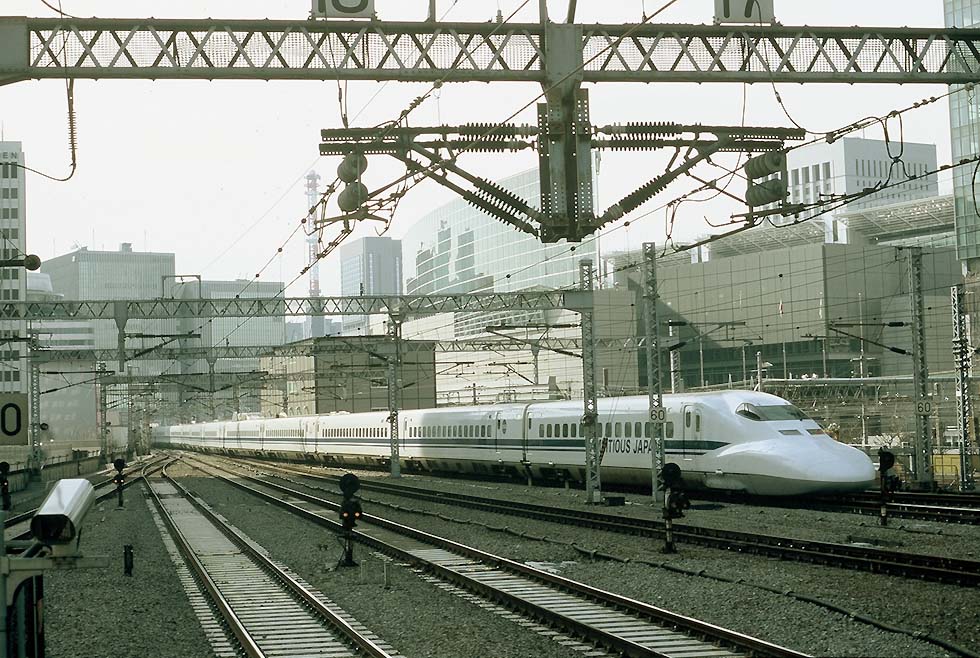

Nozomi series 700, Tokyo Central, 2005 (WS)

Nozomi tilting N700 in 2007 (Cassiopeia_sweet, via Wikimedia)

Shinkansen 800 at Kurume, 2011 (JKT-c, via Wikimedia)

JR East Shinkansen 400 at Yamagata (spaceaero2, via Wikimedia)

JR East pre-production E5 at Sendai depot, 2009 (DAJ Fossett, via Wikimedia)

JR East E6, test at Morioka Station, 2010 (Sukhoi 37, via Wikimedia)

Maglev SML LMC design from 1995 (Japan Railways)


Maglev test run (Yosemite, via Wikimedia)
